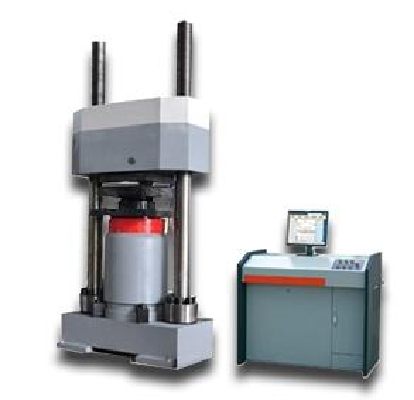

Main performance index:

1, the maximum test force: 300kN;

2, the test force measurement range: 6KN-300kN;

3, the test force value accuracy: 1%;

4, displacement measurement resolution: 0.01mm;

5, deformation measurement: standard configuration of the standard distance 50mm, the maximum deformation of 10mm.

6, deformation measurement accuracy: 0.5%

7, constant, constant deformation, constant displacement control range: 0.4%~100%FS

8, constant, constant deformation, constant displacement control precision:

When setting the value of <10%FS, the set value is less than 1%

The set value greater than or equal to 10%FS, set the value of less than 0.5%

9, the deformation rate control accuracy: the rate of <0.05%FS is within the set value of 2%

The rate is not less than 0.05%FS 0.5% value set

10, the maximum piston movement speed: 100mm/min;

11, maximum tensile test space: 650mm (including piston stroke)

12, the maximum compression space: 550mm (including piston stroke)

13, the thickness of the flat specimen holder: 0-15mm

14, round specimen clamping diameter: diameter of 6- 26mm.

15, size: 200 * 200mm

16, bending test roll spacing: 350 mm

17, support roll width: 140mm

18, pivot diameter: 30mm

19, piston stroke: 200mm;

20, the clamping way: hydraulic clamping

21, sensor and amplifier: oil pressure sensor, inserted in the PC machine programmable amplifier, automatic zero adjustment, calibration

22, size: host: 860 x 560 x 2100mm

Oil source: 1100 * 700 * 950mm

23, the weight of the whole machine: 2200 kg
